simcut BF

Tool system for broaching applications in bores as of Ø 14,0 mm.

simcut BF

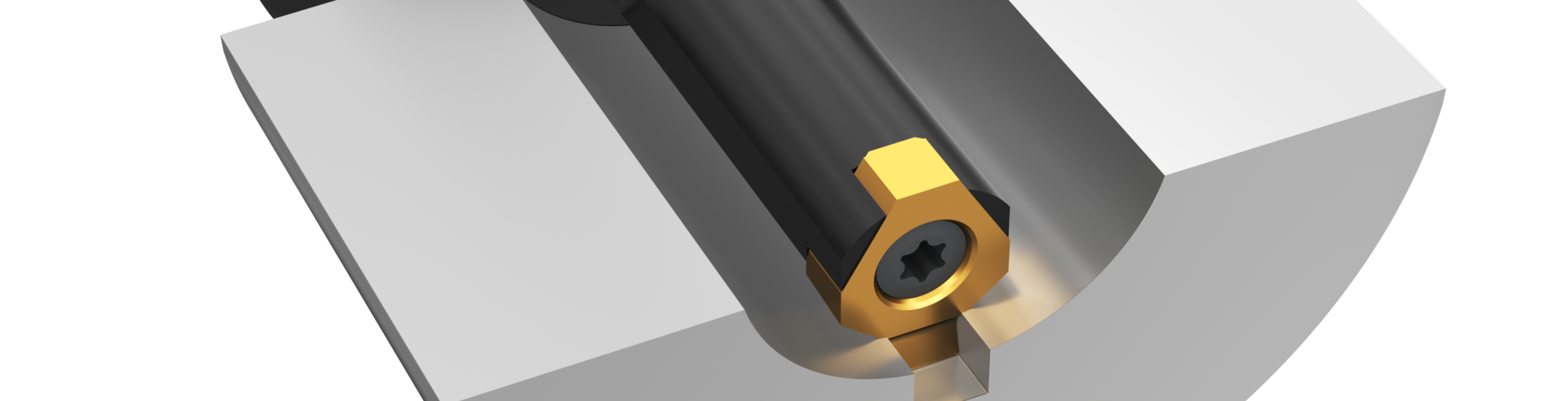

Tool system for broaching applications without reclamping on capable CNC-machines. Available standard profiles: Key ways and hexagon socket. Use the possibility to reduce the overall costs and nonproductive time by completely machining without reclamping.

The system simcut BF with steel toolholder and carbide cutting insert is suitable for internal profiles in bores from a bore diameter of 14.0 mm.

carousel logo
right arrow Download MainCatalog R25DE
System details:


Cutting tools:


The simcut tool system for broaching applications offers standard cutting tools for the following profiles:

• Keyways (according to DIN 6885)
• Keyways (according to DIN 138)
• Hexagon socket

The insert range is extended by individual tools for special profiles, such as involute toothing profiles and others.

Exemplary profiles, which can be produced with simcut BF:

 simcut BF im Detail





Toolholder:


Two kinds of toolholders are available for holding the range of Standard and
special customized cutting inserts:

  • Toolholders for conventional broaching
  • Toolholders for broaching units:

- Benz "LinA"
- EWS "Slot"
- WTO
- Schwarzer "Version 1"
- Schwarzer "Version 2in1"





 simcut BF im Detail




  • .
