simmill UX

Modular circular milling with three and six edged milling inserts for use in bores as of Ø 15,0 mm (0.591").

simmill UX

System of milling cutter shank and indexable carbide milling insert for use in bores as of Ø 15,0 mm (0.591").

Three and six edged milling inserts with cutting diameters of Ø 14,7 mm (0.579"), Ø 17,7 mm (0.697") and Ø 19,7 mm (0.776").

The insert seat is designed to provide optimal cutting force transmission as well as tight concentricity and axial-runout tolerances.

carousel logo
right arrow Download MainCatalog R25DE

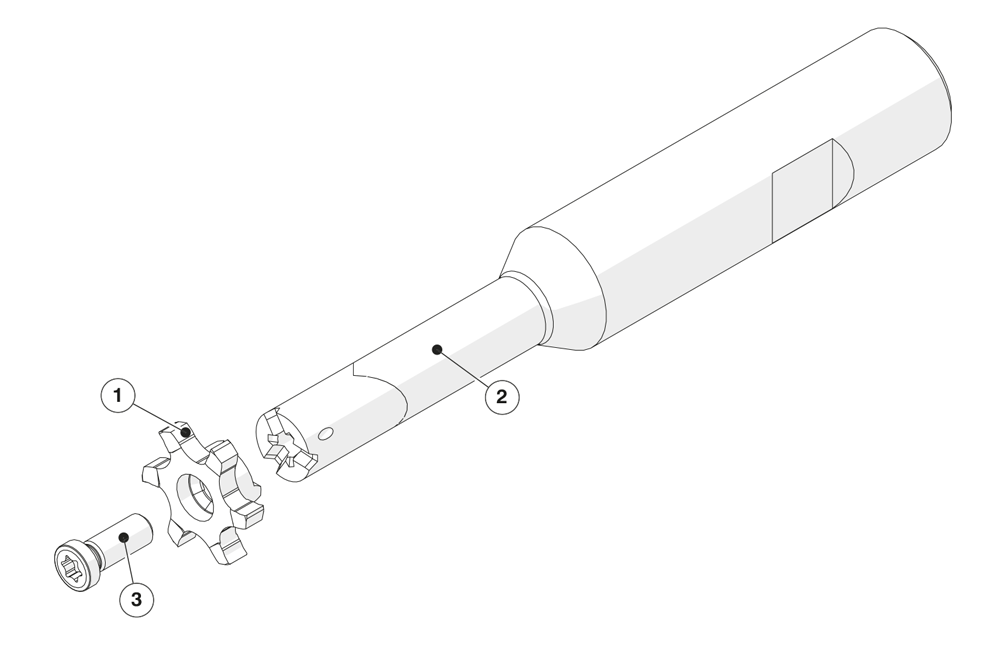

System details
  1. 1) High performance micro grain carbide milling inserts available with a wide range of coatings for every application

    2) Milling cutter shanks made of carbide or steel, mainly with through coolant supply and vibration-reducing insert seat

    3) Torx screw
  2.

asset_image

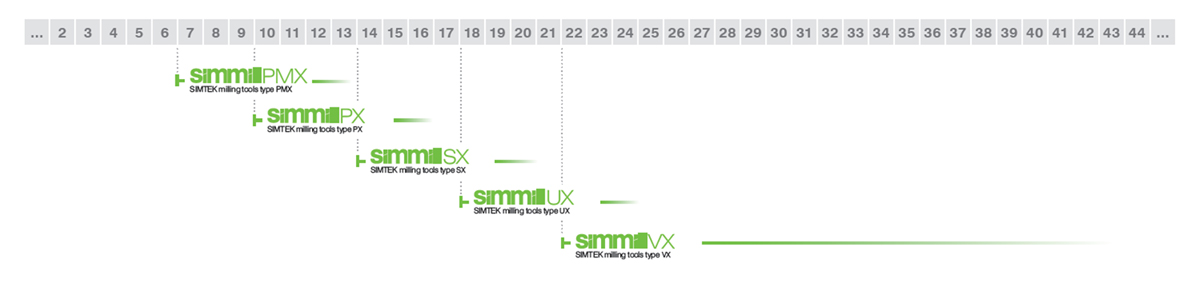

Size comparison

For bore diameter (mm)
asset_image
