Tool system with two-edged indexable cutting inserts, square shank sizes from 10x10 mm (0.375'' x 0.375'') on and cutting depths up to 7,0 mm (0.276'').

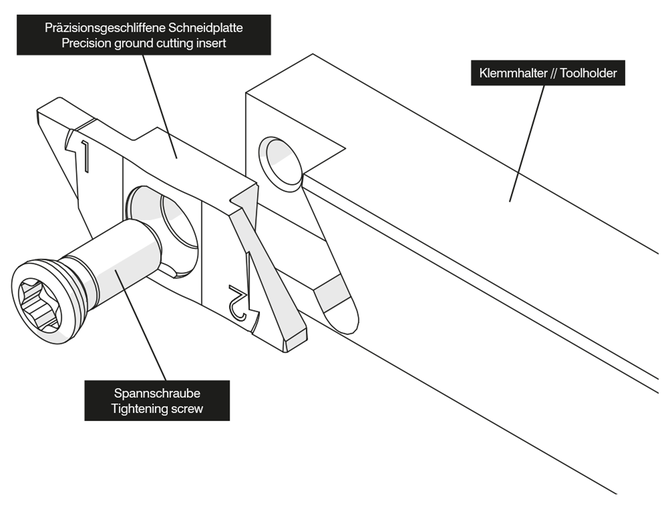

The tool system simturn K2 was designed to meet highest expectations in Small Part Machining The system provides two-edged indexable cutting inserts and square shank sizes from 0.375'' x 0.375'' on. All the major applications are available as standard items providing cutting depths up to 7,0 mm (0.276'').

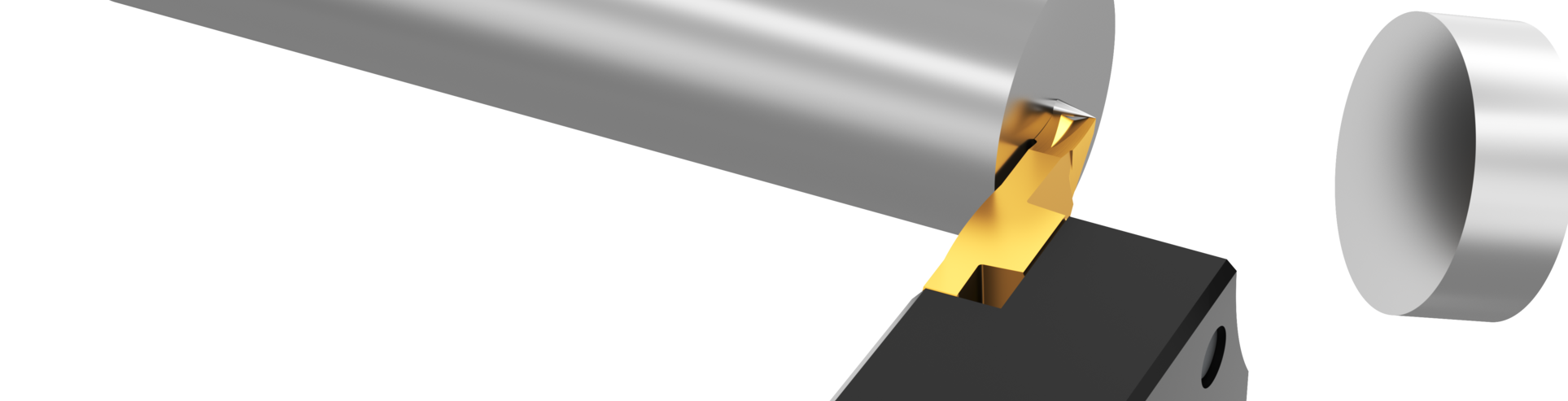

Within the standard range, also available for grooving and longitudinal turning with a 3D-lasered chip forming geometry for optimum chip control.
Tools for Threading, metric ISO-Thread, partial profile, external.
Tools for Threading, metric ISO-Thread, fullprofile, internal.
Tools for Threading, UN, Full Profile, external.
Tools for Threading, UN, Partial profile, external.

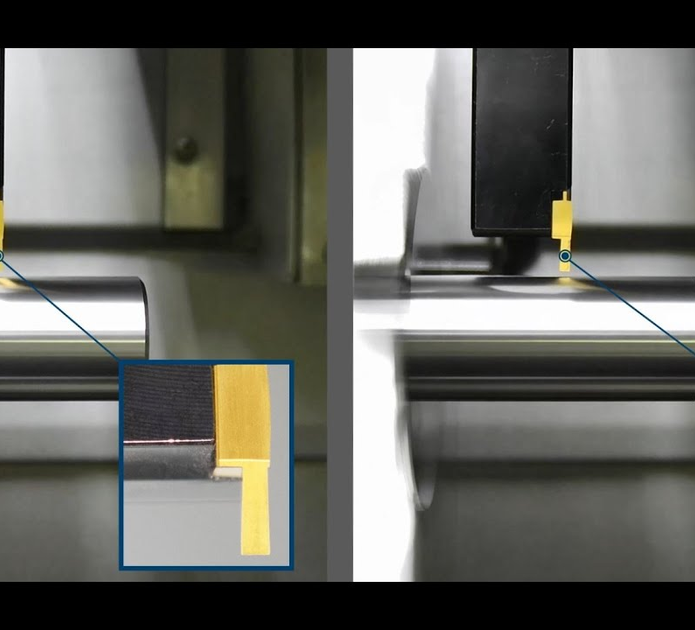

Comparison of a ground and a 3D-lasered chip forming geometry during grooving and longitudinal turning with simturn K2.
