simmill VX | © SIMTEK

simmill VX

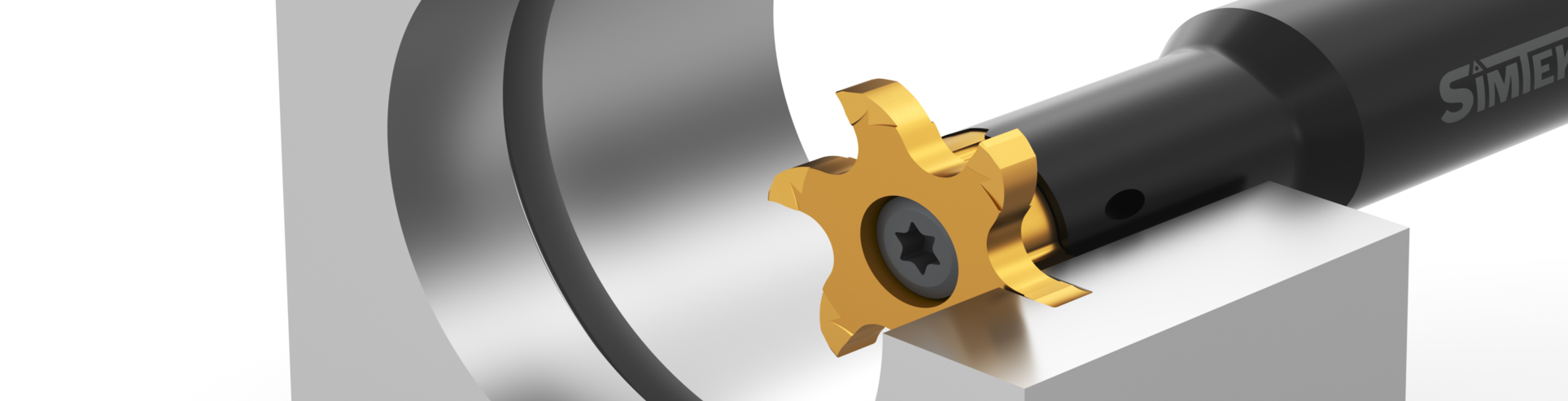

Modular circular milling with three and six edged milling inserts for use in bores as of Ø 20,0 mm (0.787").

simmill VX

System of milling cutter shank and indexable carbide milling insert for use in bores as of Ø 20,0 mm (0.787").

Three and six edged milling inserts with different cutting diameters between Ø 19,7 mm (0.776") and Ø 39,7 mm (1.563").

The insert seat is designed to provide optimal cutting force transmission as well as tight concentricity and axial-runout tolerances.

carousel logo
right arrow Download MainCatalog R25DE
System details
  1. 1) High performance micro grain carbide milling inserts available with a wide range of coatings for every application

    2) Milling cutter shanks made of carbide or steel, mainly with through coolant supply and vibration-reducing insert seat

    3) Torx screw
  2.

asset_image

Size comparison

For bore diameter (mm)
asset_image

Further tools for Milling applications:
